Description
TI Automotive E5LM High Performance Brushless Fuel Pump

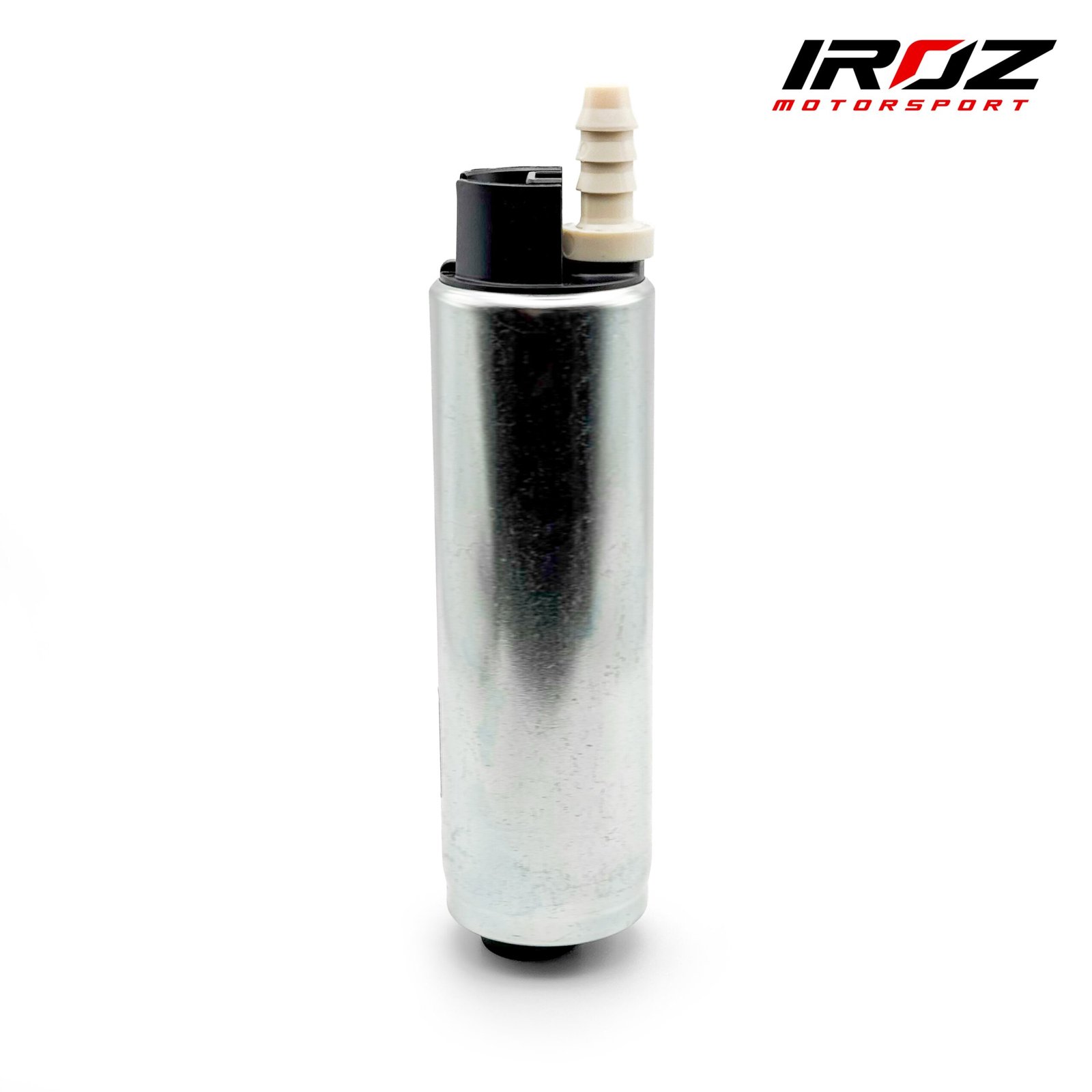

This is a Replacement / Universal Fuel Pump Only (As Pictured)
Technical Overview:
The E5LM Brushless Fuel Pump is engineered with optional compatibility for advanced control methods such as Sinusoidal or Field Oriented Control (FOC). This robust setup ensures reliable performance and precision management of fuel delivery systems. The kit includes the E5LM pump only
Key Specifications:
Optimized for High Performance: Designed to effortlessly support engines up to 1000+ horsepower under typical operating conditions.
Inlet/Outlet Fittings: Robust 19mm inlet and 11mm outlet fittings for secure and efficient fuel flow.
Compact and Durable Design
Body Diameter: 38.25mm
Overall Length: 155mm
Pump Model: E5LM
Operating Voltage: 12V DC
Maximum Flow Rate: Up to 594 liters per hour
Efficient Fuel Delivery:
525 L/hr at 3 Bar (44 psi)
465 L/hr at 5 Bar (73 psi)
375 L/hr at 7 Bar (101 psi)
Maximum Pressure: 8.2 Bar
Performance Highlights:
The E5LM Brushless Fuel Pump is tailored for high-output applications, offering low amp draw to minimize electrical load while maximizing fuel delivery. Its precision engineering and robust construction make it an ideal choice for high-performance and racing applications.
