B8 Conversion Harness to Brushless LPFP

Multiple listed applications — review the vehicle and installation requirements below before ordering.

B8 Conversion Harness to Brushless LPFP
Supplier installation example: B8 conversion harness factory connector identification
Supplier installation example: B8 conversion harness connected at the fuel-pump access opening
Supplier installation example: second level-sensor adapter wiring on the fuel-pump assembly
Supplier installation example: factory fuel-pump controller access location
El Doc Solutions

$240.00

Order review required before payment.

Vehicle fitment
Technical support
Supplier fulfillment
Check compatibility (optional)

You can add this part to your cart without selecting a vehicle. Check the product description for applications and installation requirements.

Review your vehicle

Select your model year, make, model and engine.

Matches use the listed vehicle series and model years. Product descriptions explain any exclusions and installation requirements.

SKU: ER-ELD-0023 Category: Brand:

Description

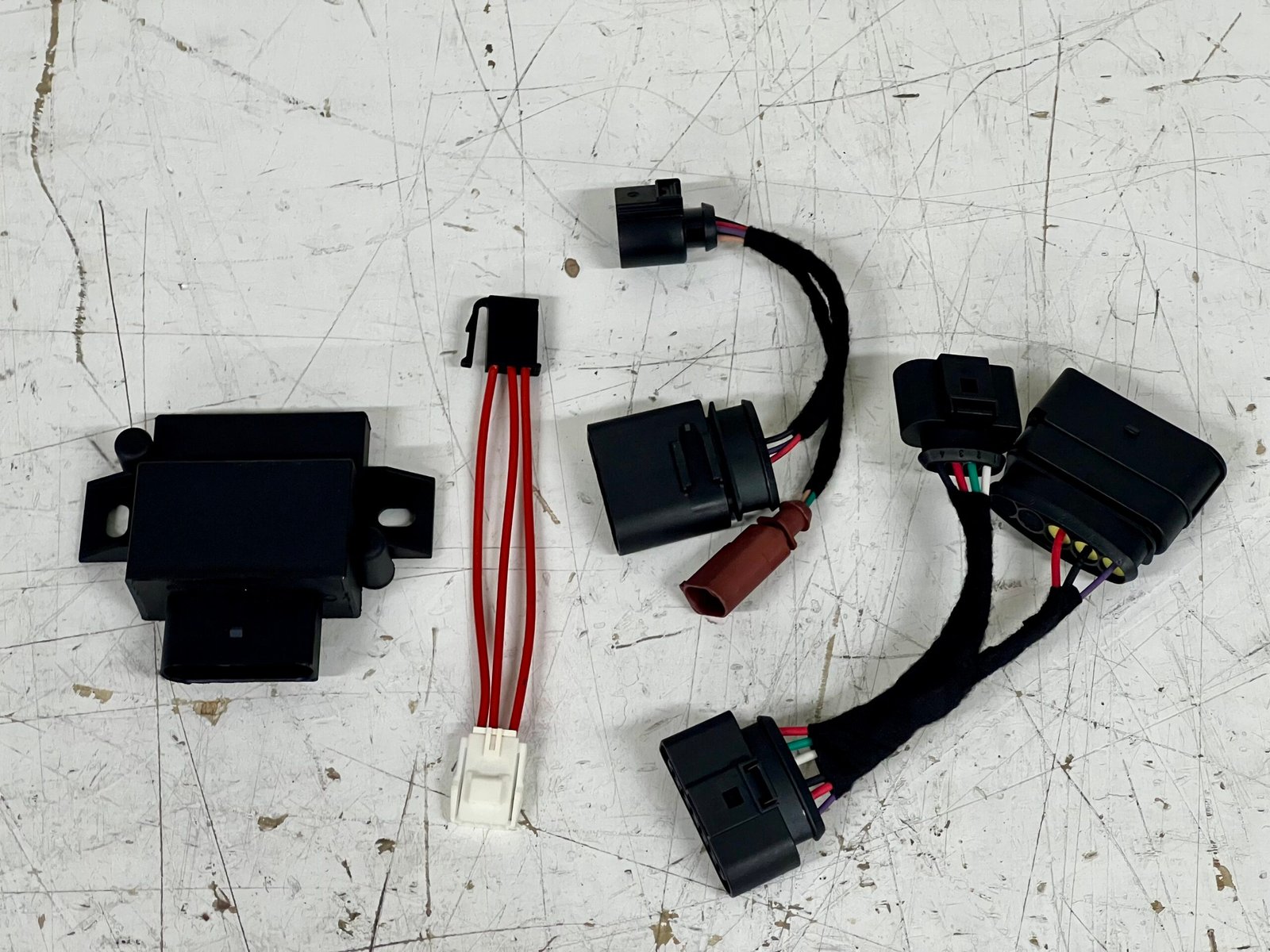

Conversion wiring harness for adapting an early B8 brushed fuel-pump installation to El Doc’s dual brushless fuel pump assembly. Plug-in connections adapt the existing B8 wiring. Follow the complete supplier installation instructions for the second level-sensor adapter, routing clear of the fuel-level float and controller connections.

Vehicle fitment

Fits the vehicle series below. Stated exclusions and installation requirements apply.

Years Make Model Series Engine
2009–2012 Audi A4 B8 All listed model engines
2008–2012 Audi A5 B8 All listed model engines
2010–2012 Audi S4 B8 All listed model engines
2008–2012 Audi S5 B8 All listed model engines

Installation and package

Gallery installation examples show the harness connections, sensor-adapter routing and controller location from the supplier’s B8 conversion guide. The pump and controller appear for installation context; this listing is for the conversion harness.

For early B8 installations converting the factory brushed pump system to El Doc’s brushless assembly. Requires a pump-signal tuning change. Follow the level-sensor adapter, float-clearance and controller wiring instructions.

Shipping and availability

Ships directly from El Doc Solutions. Shipping is charged separately. Contiguous-U.S. delivery ZIPs can receive Standard ground, 2-Day Air and Express overnight estimates at checkout. Alaska, Hawaii, military and international destinations receive a manual shipping quote, subject to supplier and carrier confirmation. International customs, duties/taxes and payment responsibility are confirmed before payment. Processing is estimated at 1–2 business days, pending supplier confirmation. Domestic transit estimates begin after dispatch: ground 3–5 business days, 2-Day Air 2 business days, Express overnight 1 business day. Confirm availability and the dispatch estimate before ordering.

Returns and warranty

Unused products may be returned within 30 days. Installed products cannot be returned because of a change of preference. Defective products are covered by a one-year warranty.

Contact eldocsolutions@gmail.com for return or warranty requests. Return address: El Doc Solutions, 5117 Pebble Rim St, North Las Vegas, NV 89081.

Additional information

Estimated packed weight 2 lbs
Estimated packed dimensions 12 × 10 × 4 in

Listed vehicle applications

Fitment follows the named vehicle series and U.S. model years. Check the product description for stated exclusions and installation requirements.

MakeModelGenerationEngine
AudiA4B8All listed model engines
AudiA5B8All listed model engines
AudiS4B8All listed model engines
AudiS5B8All listed model engines

Vehicle fitment years

Follow the stated installation requirements and exclusions.

YearsMakeModelEngine
2009-2012AudiA4Confirm engine
2008-2012AudiA5Confirm engine
2010-2012AudiS4Confirm engine
2008-2012AudiS5Confirm engine
Vehicle generation guide — TGK references

Use these supplier year ranges to help identify your vehicle generation. They apply to TGK products and do not establish that this fuel pump or kit fits. Confirm your market, engine and exact assembly.

MakeModelTGK generationSupplier yearsReview note
AudiA4B8/B8.52010–2016Product-specific reference; confirm engine and market.
AudiA5B8/B8.52008–2016Product-specific reference; confirm engine and market.
AudiS4B8/B8.52010–2016Product-specific reference; confirm engine and market.
AudiS5B8/B8.52008–2012Product-specific reference; confirm engine and market.
AudiS5B8/B8.52008–2017Product-specific reference; confirm engine and market.
AudiA5B8/B8.52008–2010Product-specific reference; confirm engine and market.
AudiS5B8/B8.52010–2017Product-specific reference; confirm engine and market.
AudiA4B8/B8.52009–2016Product-specific reference; confirm engine and market.
AudiA5B8/B8.52010–2017Product-specific reference; confirm engine and market.
AudiS5B8/B8.52010–2016Product-specific reference; confirm engine and market.
AudiS5B82008–2012Product-specific reference; confirm engine and market.
AudiS5B8/B8.52010–2014Product-specific reference; confirm engine and market.
AudiA4B8/B8.52013–2016Product-specific reference; confirm engine and market.
AudiS4B8/B8.52013–2016Product-specific reference; confirm engine and market.
Source: TGK-FitmentGuide.csv. Supplier ranges may differ by TGK product. No engine or market is specified in the sheet.
