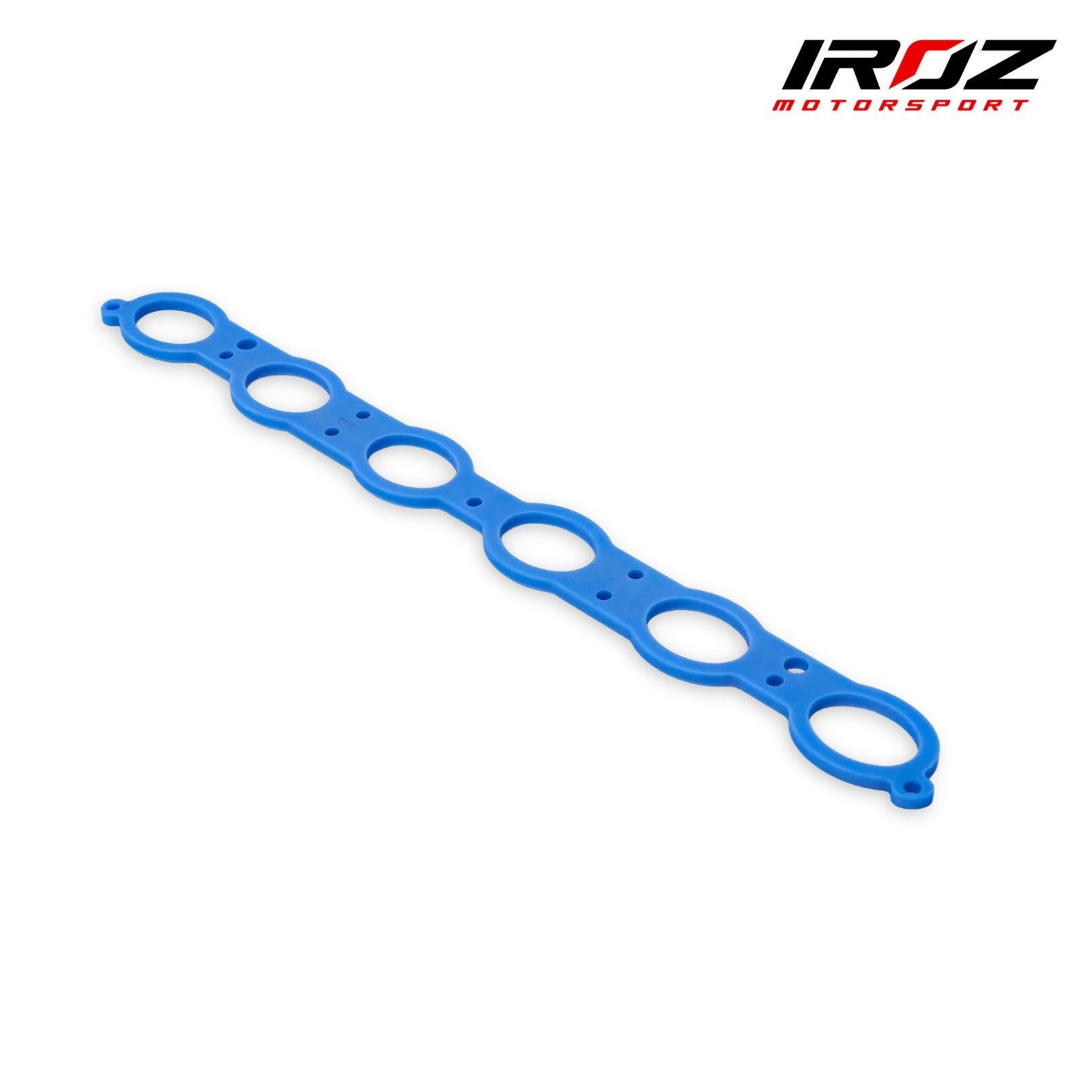

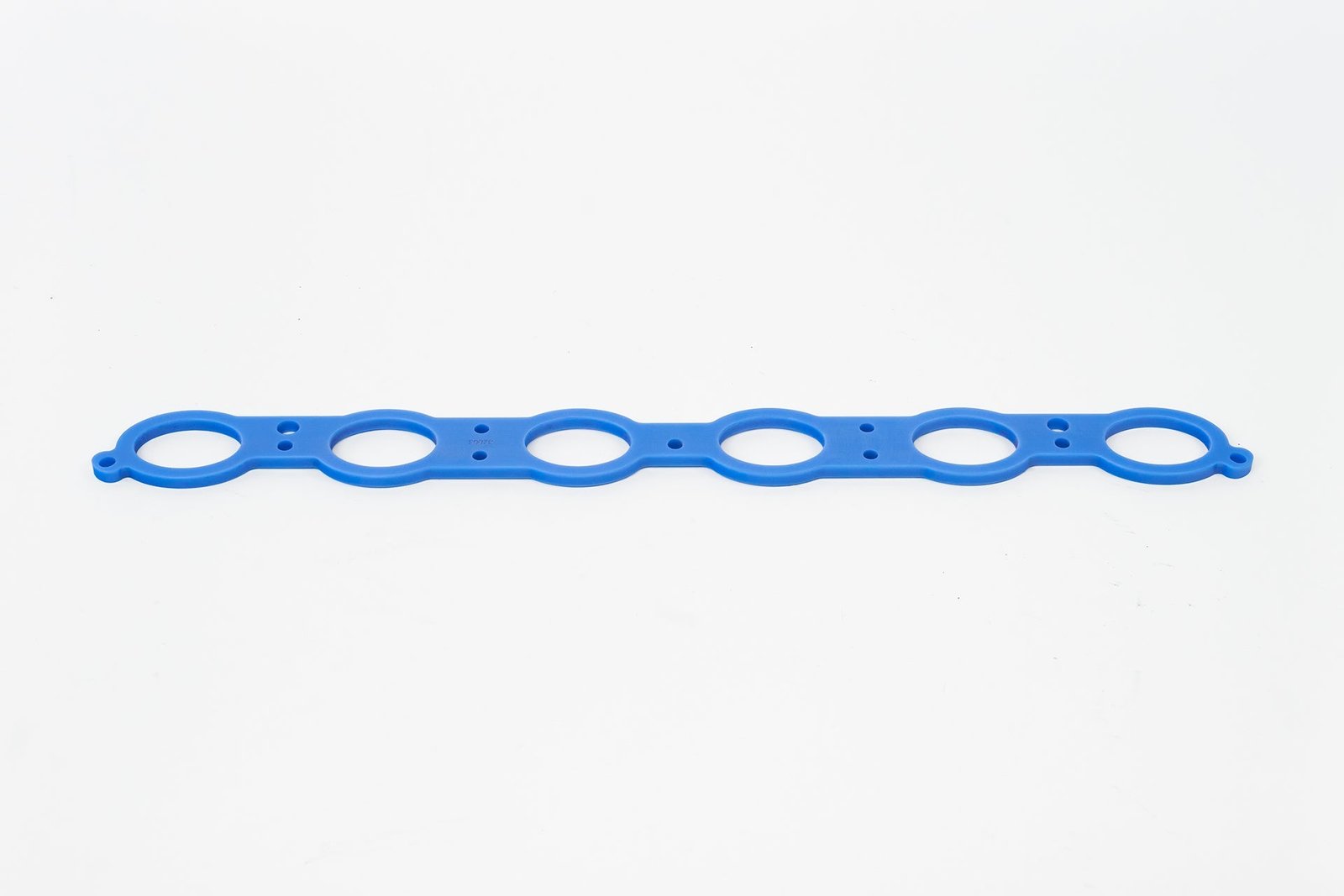

CSF Intake Manifold Thermal Gasket / Spacer for BMW M240 (G42) M340 (G20) & Toyota Supra MKV (A90) B58 B58B30C Engines

The CSF B58 Thermal Rejection Competition Spacer is the next level upgrade for the B58 Super Manifold (CSF #8200). Made from KIYLEX®, a patented revolutionary high-performance final stage polymer. KIYLEX® is as strong as aluminum and can withstand temperatures up to 1100°F. This spacer is designed to insulate the intake manifold from conductive heat transfer from the cylinder head. This thermal barrier reduces manifold temperatures which helps lower Intake Air Temperatures (IATs), improve charge air cooler efficiency, and combats heat soak.

Tested at the Race Motive Event at Pocono Raceway (⅓ Mile Roll-Racing) in the B58/S58 Motor Class (July 9th 2022). One of the most respected B58 Tuners in the world, who has also been a development partner with CSF for the Gen-2 B58 Super Manifold, Visconti Tuning performed the testing with @peppa_aka_skull’s A90 Supra with @mrnohesi’s G20 M340i for direct comparison. Both cars are running the same setup and tune pushing ~900whp and 40 PSI of boost pressure. The data logs from the subsequent runs after the first run of each racer showed IATs were an average of 77°F (25°C) lower at the start of the run for the A90 Supra with the CSF B58 Thermal Rejection Competition Spacer installed compared to the G20 M340i without the spacer. These results demonstrated the Thermal Rejection Spacer’s ability to combat heat soak and keep the B58 Super Manifold performing at peak efficiency during competitive driving.

The addition of the Thermal Rejection Spacer is especially useful for Drag/Roll-Racing Events where vehicles typically sit in staging lanes in-between racing. This causes extreme heat soak to the liquid-to-air manifold as there is not sufficient airflow passing over the front mount heat exchanger when the car is idling (which is responsible for cooling the charge air fluid that runs through the manifold). This causes the starting IATs on subsequent runs to be higher than on the initial run.

The B58 Super Manifold is made from Billet Aluminum and 100% Tig Welded for strength, which allows it to be able to withstand higher boost pressures compared to the OEM plastic manifold. Aluminum has higher thermal conductivity than plastic resulting in a higher rate of heat transfer between the cylinder head and manifold. Adding the Thermal Rejection Spacer reduces heat transfer between the two metal components (cylinder head & manifold). The spacer absorbs the heat from the cylinder head and dissipates it rather than transferring it to the manifold.

The CSF Thermal Rejection Competition Spacer was designed for vehicles competing in motorsports who demand the absolute best cooling in order to gain a competitive edge. With that being said, there are significant advantages to adding this spacer upgrade to any vehicle with the CSF B58 Super Manifold installed.

Features:

– Made from KIYLEX® – A patented revolutionary high-performance final stage polymer

– Spacer Height = 6.5mm

– Acts as a thermal barrier that dissipates heat between the cylinder head and intake manifold

– Proven to lower intake manifold temperatures by up to 15%

– Lowers Intake Air Temps (IATs)

– Can withstand temps up to 1100°F and is as strong as Aluminum

– Self-Sealing and do NOT require gaskets, silicon products, or sealing agents of any kind.

– Includes installation hardware and instructions

– Limited Lifetime Warranty

– Will not work with the OEM Manifold.
